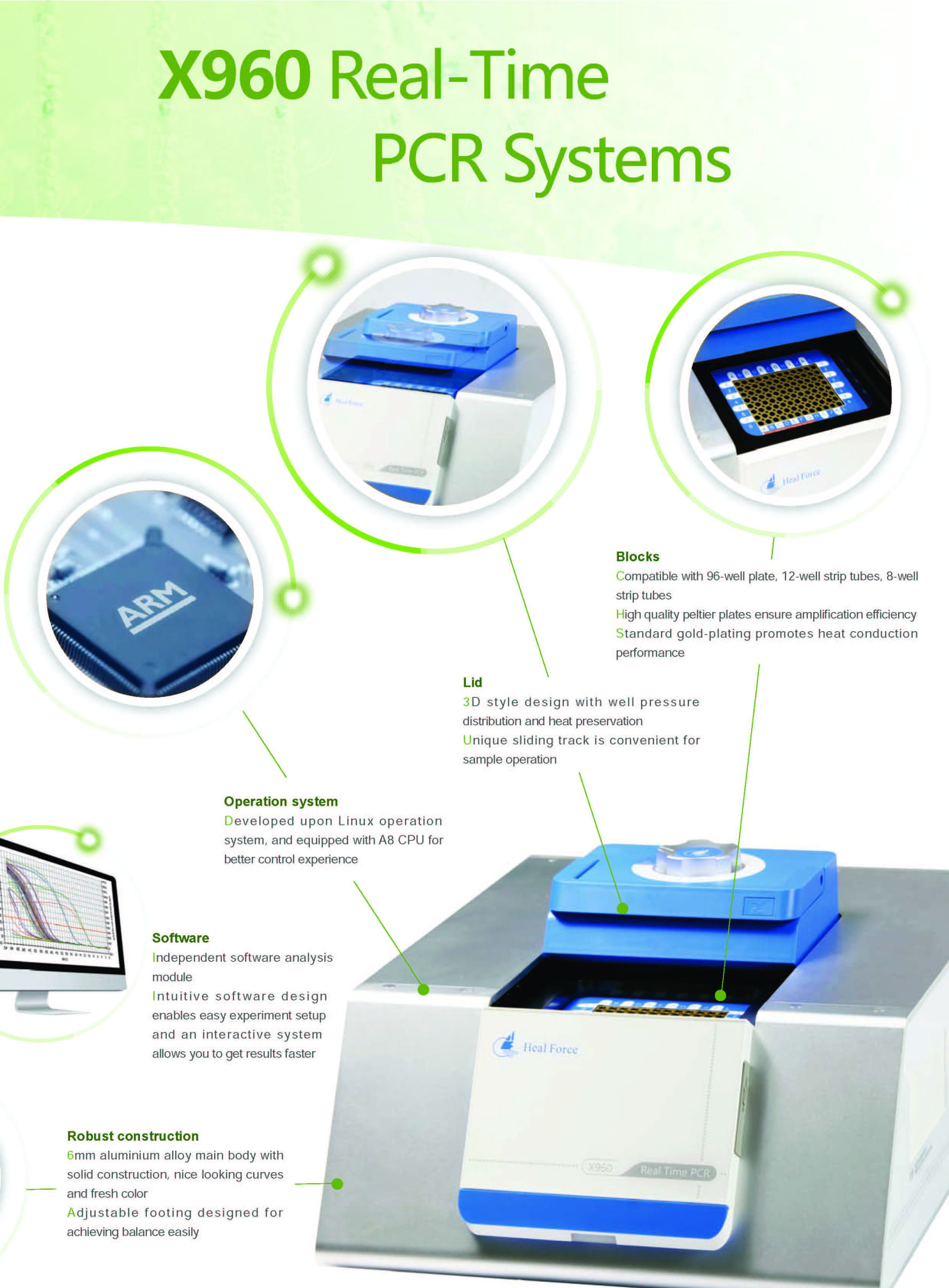

X960 Real-Time PCR system is a high-performance benchtop instrument giving you greater control of your experiment data. It delivers reliability, sensitivity,and accuracy, which is optimized to enable the broadest range of quantitative PCR applications
The detection system is equiped with
LED light source and high resolution CCD.
The optical filter sets are designed to maximize fluorescence detection for specific
dyes in specific channels
Two independent temperature control mode- block and tube, maximize control flexibility.
Excellent temperature uniformity limits the variation between wells, ensuring the
accuracy of low copy sample
The machine can be connected with PC through WI-FI or LAN. The software allows you to manage and monitor several detection system from your computer.
| Description | Specification |
|---|---|
| Bits: | Windows XP/VISTA/Windows 7 |
| Minimum Memory: | 32/64 |
| Leon Rogol | 512M |
| Display Unit: | 256MB |
| CPU: | Pentium IV 1.6GHZ or higher |
| Overall Dimensions: | 590mm (L)*442mm (W)*285mm (H) |
| Weight | 28.7kg |
| Connection Pattern: | LAN WIFI |
| Power Supply: | AC 220V 50HZ/60HZ |
| Input Power: | 1000VA |
| Fuse: | AC 250V 10A |
| Sample Capacity: | 96 holes x 0.2ml |
| Light Source: | Ultrahigh-luminance color mono-LED |
| Detector: | High-sensitivity refrigerator CCD |
| Dynamic Testing Range: | 10-100000000000 |
| Minimum Testing Template: | Single copy |
| Reaction Volume: | 15μl-100μl |
| Fluorescence Excitation Wavelength: | 470nm-612nm |
| Fluorescence Detection Wavelength: | 525nm-678nm |
| Fluorescein and Dye Detected: |
Channel 1:FAM, SYBR Channel 2:VIC, HEX, JOE, TET, TAMRA Channel 3:ROX, TEXRAD Channel 4:CY5 Channel 5:Reserved for user |
| Temperature Range: | 0℃~100℃ |
| Heating Rate: | ≥5℃/s (45℃—99℃) |
| Cooling Rate: | ≥5℃/s (45℃—99℃) |
| Temperature Control Uniformity: |
At constant 95 ℃ within 10s:±0.4℃ At constant 55 ℃ within 10s:±0.4℃ |
| Temperature Accuracy: | ≤±0.1 ℃（ 45 ℃≤T≤95 ℃） |
| Gradient Temperature Width: | 1℃—30℃ |
| Gradient Temperature Range: | 30℃—100℃ |
| Heated Lid Temperature Range: | (Rt +2℃) —110℃ |
| Temperature Control Mode: | Semi-conductor thermoelectric module |
| Gradient Temperature Range: | Semi-conductor thermoelectric module |
| Temperature Control Programming: | Max. 999 cycles |
| Special Functions: | Threshold analysis, dissolution curve analysis, grade, and customized parameters |
| Description | Quantity |
|---|---|
| PCR Automatic Instrument (96 Channel) | 1 Unit |
|
Automatic Extraction Instrument (32 Channel) (370mm x 350 mm x 380mm) |
1 Unit |
